Description

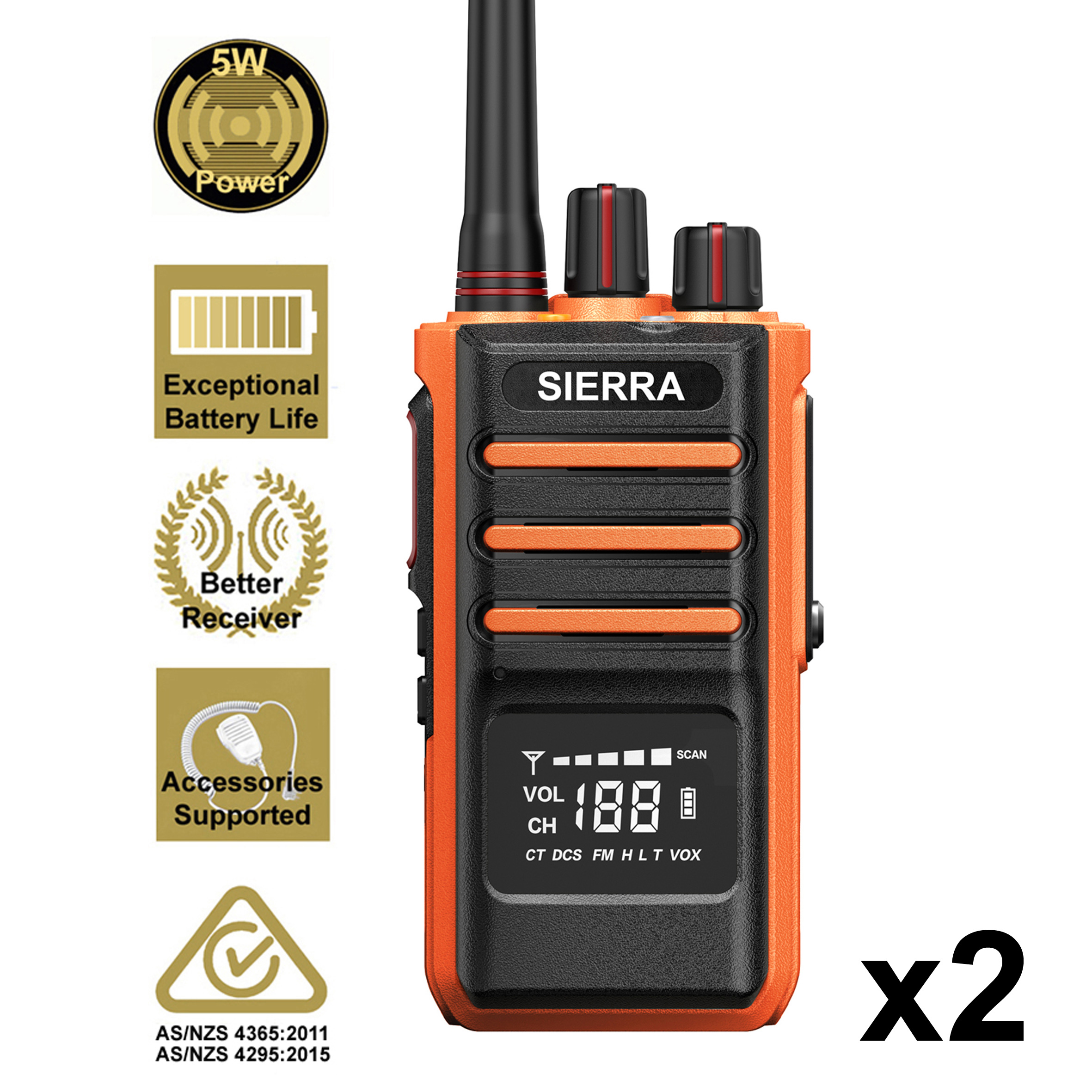

Tradies Compact SIERRA BLAZE or BLAZE plus 5W 80CH UHF CB Handheld Twin Pack including Li-ion Batteries with Type C Charging Port & USB-C Braided Charging Cables.
BLAZE is the default model, but if you would prefer the BLAZE ‘plus’ version, leave a message at checkout.
The SIERRA BLAZE has the same operating parameters as the Sierra. The only difference is the higher IP rating and E.R.T 021C orange / black housing. Built on the same principles as the original AUSCB – easy to use, yet powerful.
The SIERRA BLAZE plus has the same IP66+ rating (puddle proof) as the SIERRA BLAZE but with Menu access via one of the side keys. The plus version is aimed at the more advanced radio operator, allowing access to functions like CTCSS/DCS, Adjustable Squelch, VOX, Power, Scan Add or Delete, Voice Announce Off/On, Roger Beep, Key Beep, Key Lock Mode and Scrambler*.

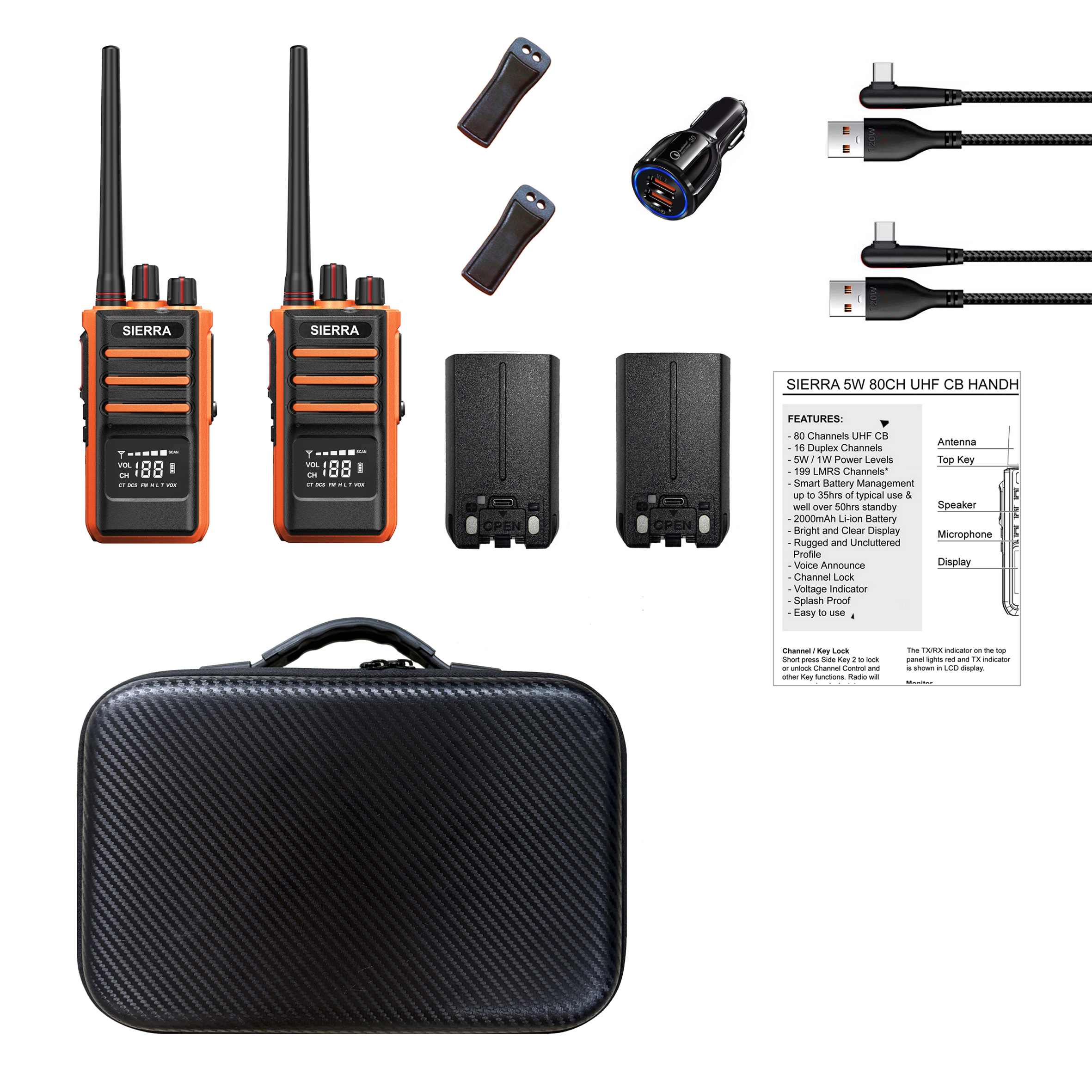

Comes with:
2 x SIERRA BLAZE or BLAZE plus 5W 80CH UHF CB Handhelds + normally supplied antennas and belt clips
2 x SIERRA Li-ion Batteries with Type C Charging Ports
2 x USB-C Braided Charging Cables
1 x Qualcomm 3.0 Dual USB Cigarette Plug Adapter
1 x Compact Semi-Rigid Twin Radio Case with moulded foam insert
1 x Simple and easy to understand manual
Features:
– 80 Channel UHF CB (476.4250 – 477.4125 MHz)
– 16 Repeater Channels
– 5W and 1W Adjustable Power Levels
– 199 LMRS Channels*
– Smart Battery Management
– Bright and Clear Display
– Rugged and Uncluttered Profile
– Voice Announce
– Channel Lock
– Channel Scan
– Voltage Indicator
– Compact size (body 106mm x 58mm x 38mm)
– Puddle Proof (temporary immersion is shallow water IP66+) / Dust Proof / Splash Proof
– Low Battery alarm
– Easy to use
– Designed for Australia and AS/NZS Type Approved
12 Months Warranty on radio from defects in materials or workmanship from date of purchase.
Special mention:
Channel Lock – quick press side key 2 to lock or unlock Channel Control and other Key Functions.
Adjustable Power Level (BLAZE) – press and hold side key 2 until the radio announces ‘high power’ or ‘low power’. An H or L will also indicate in the screen
Menu (BLAZE plus)- press and hold side key 2 until the radio announces ‘Menu’. Rotating the Channel Control allows function selection.
Channel Scan – quick press side key 3 to scan all CB channels (default), which then prioritises the last active scan channel in the scan sequence, so you don’t miss anything on that last channel.
Voltage Indicator – press and hold side key 3 until you see and hear the voltage state of the radio expressed as a percentage.
Bright and Clear Screen – channel number will show on the Display Screen for 10 seconds, before the screen goes blank to conserve battery power. Display will show again if channel is changed or key functions activated. Top key can also be used to turn on or off the display. This does not apply when the scan function is running.
Voice Announce – tells you what the radio is doing when changing the channel or using key functions. Very handy when you can’t see the screen or are vision impaired.
Receiver sensitivity: <0.20uV @ 12dB SINAD (-120dBm). In layman’s terms that means really good, better than standard.
What grabs most peoples attention when they first get the SIERRA Radio is how solid the radio feels in their hands and the build quality. The SIERRA Radio is supported by a full length Aluminium Chassis.
^The SIERRA is also type approved to the Land Mobile Service (licensed private or commercial frequencies) covering 403-480Mhz, which means it has to be held to a higher technical standard than the average CB. Dealer programming of CTCSS/DCS, different key functions and selective scanning can be customised for these LMRS channels.
Approved to Australian Standards:
AS/NZS 4365:2015
AS/NZS 4295:2011
AS/NZS 62368-1
AS/NZS 2772.2:2016; EN/IEC/IEEE 62209-1528:2021 & EN 50566:2017
AS/NZS CISPR32
SIERRA 7.4V Nom. 1500mAh Rechargeable Lithium-ion Battery Packs with Type C Charging Ports
Suits SIERRA, SIERRA BLAZE and BLAZE ‘plus‘ 5W 80CH UHF CB Handhelds.
Allows charging by both the Sierra Charging Dock (not supplied with this bundle) or USB-C Charging Cable (supplied).
Gives up to 50hrs standby time, and up 26 hrs typical use, even at high power (most companies quote at low power).
Battery Packs can also be charged separately without the radio attached, if required.
USB-C Braided Charging Cable
Allows USB Charging of the SIERRA Li-ion Battery with Type C Charging Port.
Braided cable is 1 metre in length and has a 90 degree elbow at the Type C plug end.
Compact Semi-Rigid Twin Radio Case with Moulded Foam Insert
Measures approximately 295mm (w) x 205mm (d) x 90mm (h). Incorporates a carry handle and attractive woven graphite look finish.
* Scrambler function is only recommended for close range communications.
